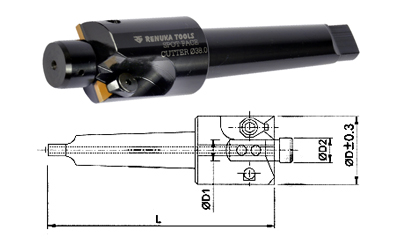

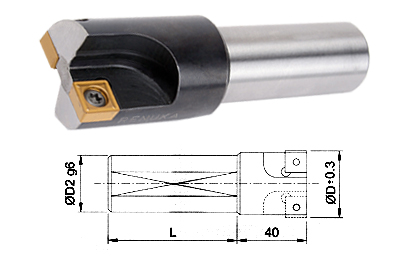

Insert type piloted spot face cutters     Ordering No. Spot face dia. ØD1 H8 Min. pillot ØD2 MT L Inserts No. of Inserts Clamp Clamp Screw 400 026 26.0 5 09.0 MT3 150 TCMT 11 02 08 2 screw clamp M2.5xT8 400 028 28.0 6 11.0 400 030 30.0 6 13.0 MT3 150 TPUN 11 03 08 2 73 085 892 CSK M5x12 400 032 32.0 8 15.0 400 036 36.0 10 19.0 CSK M5x16 400 038 38.0 10 21.0 400 040 40.0 8 13.0 MT3 150 TPUN 16 03 08 400 045 45.0 10 18.0 3 73 085 868 Allen screw M6x16 For use on Radial Drilling Machines ................................................................................................................................................................................................ Straight Shank Spot Face Cutters     Ordering No. Spot face dia. Minimun pre-drill dia. ØD2g6 L No. of Inserts Inserts Insert Screw Torx key 500 022 22 6 20 50 2 SCMT 09 T3 04 M3.5XT15 T15 500 024 24 8 500 025 25 9 500 026 26 10 500 028 28 12 500 030 30 8 25 56 2 SCMT 120408 M4.5XT20 T20 500 032 32 10 500 036 36 14 32 60 2 SCMT 120408 M4.5 x T20 T20 500 038 38 16 500 040 40 18 500 045 45 23 32 60 3 SCMT 120408 M4.5XT20 T20 For use on Machining Centres.
