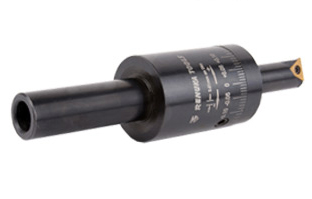

Finish boring bars for single & small bores

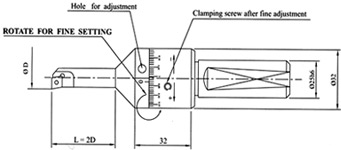

These are eccentrically adjustable fine boring bars (EBB)

These are similar to Nine9 type insert type boring tools.
APPLICATIONS:
  • Ideal for milling machines, machining centers & special purpose machines.

  • Each graduation is 0.01mm. on dia.suitable for fine boring of small holes like dowel holes, bearing bores, oil seal bores etc.

  • Adjustment range ±0.1MM. On Dia

Standard Tool

CHART FOR INSERT & RANGE SELECTION
NOTE: ADJUSTMENT RANGE +_ 0.1MM ON DIA. IN EACH TOOL
Ø D INSERT
MINI. MAX.
6.0 7.7 CCGT 030104
7.8 11.9 TCGT 06T104
12.0 13.9 CCGT 060204
14.0 upto 0 40 TCGT  110204


HOW TO ORDER

SERIES NO. DIA ORDERING NO.
800 10 800100
800 12.3 8001230
Few Specials
