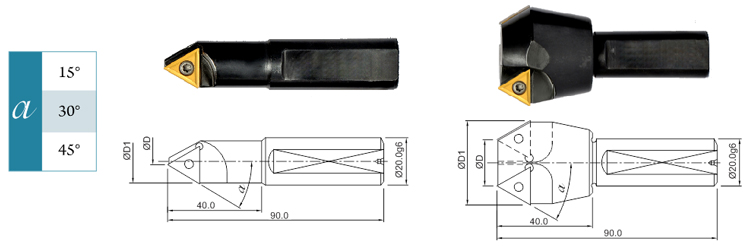

Chamfering tools for machining centres   Ordering No Angle α Ø D Ø D1 Ø Range No. of inserts Insert Insert screw Torx key 1151117 150 9 18 11 - 17 1 TCMT 16T304 M3.5X9XT15 T15 1151722 16 24 17 - 22 1 1152328 22 30 23 - 28 1 1152934 28 36 29 - 34 2 1153439 33 41 34 - 39 2   1300618 300 4 20 6 - 18 1 TCMT 16T304 M3.5X9XT15 T15 1301526 13 28 15 - 26 1 1302232 20 35 22 - 32 2 1303040 28 43 30 - 40 2   1450621 450 4 25 6 - 21 1 TCMT 16T304 M3.5X9XT15 T15 1451933 15 37 19 - 33 2 1453146 28 50 31 - 46 2   Back Chamfering Tools   Ordering No Angle α Ø D Ø D1 Ø Range No. of inserts Insert Insert screw Torx key 1001220 450 10 22 12 - 20 1 SCMT 09T308 M3.5X9XT15 T15 1001826 16 28 18 - 26 2 1002537 23 39 25 - 37 2 SCMT 120408 M4.5X11XT20 T20
